Description

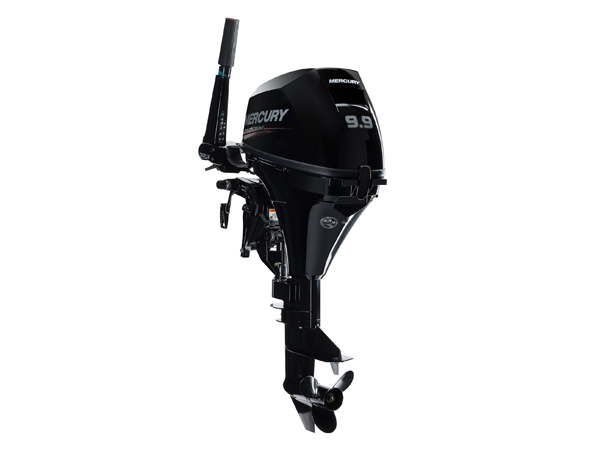

2017 Mercury 9.9 HP 9.9ELH Outboard Motor
The portable Mercury 9.9hp outboard motor is lightweight, compact, and powerful. Mercury model #: 9.9ELH comes equipped with an electric start and a 20 inch shaft, auto ratchet trim, and multi function tiller control. The 9.9 ELH is a great choice for long shaft jon boats, skiffs, and small pontoons as well as sailboat power. The Mercury 9.9 HP outboard engine is a twin-cylinder four-stroke that delivers smooth, quiet, fuel efficient operation with the reliability that Mercury is known for.
2017 Mercury 9.9 HP 9.9ELH Outboard Motor
- Compact and Lightweight
- Electric Start + 12V 76W 6A Alternator
- Thru-Cowl Backup Manual Start
- Digital CD Ignition with Spark Advance
- High Grade Marine Alloy Construction
- Stainless Steel Water Pump Housing
- Zinc Coated Water Passages
- Rated for Saltwater Use
- Sacrificial Zinc Anodes and Trim Tab
- Tiller Integrated F-N-R Gear Shifting
- Adjustable Steering Tension Control
- Twist-Grip Throttle with Tension Control
- Thermostat Controlled Water Cooling
- Auto Ratchet Trim System (5 positions)
- Shallow Water Drive
- Quiet Through-Propeller-Hub Exhaust
- 3.2 Gallon Fuel Tank and Fuel Line
- Start-In-Gear Protection
- Low Oil Pressure Warning Indicator
- ESG Over-Rev Protection
- Safety Lanyard Stop Switch
- Owner’s Manual
- Mercury Marine 3-Year Warranty
2017 Mercury 9.9 HP 9.9ELH Outboard Motor
| Model | 9.9ELH |
| Model Year | 2017 |
| SKU | 9.9ELH-17 |
| Weight | 93.0000 |
| Manufacturer | Mercury |
| Country of Manufacture | Japan |
| Horsepower | 9.9hp |
| Shaft Length | 20″ (Long) |
| Steering | Tiller |
| Starting | Electric |
| Trim & Tilt | Manual |
| Fuel Delivery | Carburetor |
| Fuel Tank | External |
| Cylinder(s) | 2 |
| Displacement | 208 cc (12.8 cubic inches) |
| Bore and Stroke | 55 x 44 mm (2.16 x 1.73 inches) |
| Full Throttle RPM Range | 5000-6000 |
| Ignition System | Digital CD Ignition w/Electronic Spark Advance |
| Induction Scavenging | SOHC |
| Valves per Cylinder | 2 |
| Fuel Type | 87 Octane (up to 10% ethanol content) |
| Fuel Tank / Fuel Line | 3.2 Gal. Fuel Tank + Quick Connect Fuel Line |
| Oil Type | SAE 10W-30 (Mercury 4-Stroke Outboard Oil) |
| Oil Capacity | 27 fl. Oz. (800 ml) |
| Lubrication | Trochoid Pump |
| Alternator | 12V 76W 6A (standard on electric start models) |
| Cooling System | Water-Cooled, Thermostatically Controlled |
| Saltwater Rated | YES |
| Gear Ratio | 2.08:1 |
| Gear Shift | Forward-Neutral-Reverse (shift in tiller handle) |
| Propeller | 8.5″ Diameter X 8.0″ Pitch 3-Blade Aluminum |
| Internal Battery | No |
2017 Mercury 9.9 HP 9.9ELH Outboard Motor
What’s in the box?
- Fuel Tank (3.2 gallon)
- Quick Connect Fuel Line
- Mercury 3-Year Warranty
- Aluminum Propeller
- Mercury 4-Stroke Oil
- Owner’s Manual & Tool Kit
Warranty
This model is covered by the manufacturer’s warranty as applied in South Africa, through its authorised South African service network. See our Warranty page, or email us and we will confirm the exact cover for this model before you order.
