Description

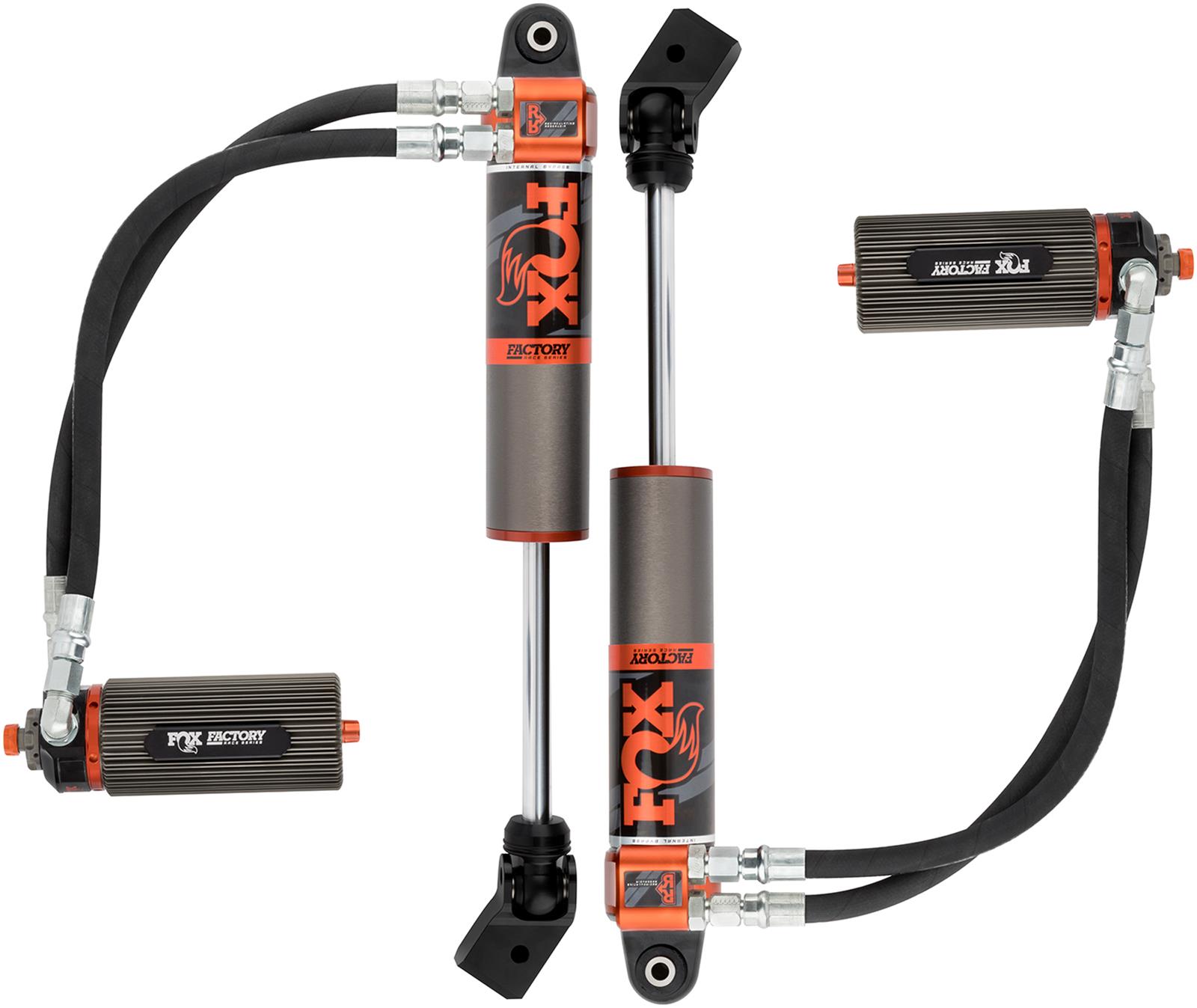

Fox Racing Shox 3.0 Factory Race Series Bypass Remote Reservoir Shocks – Unmatched Off-Road Performance!
The Fox Racing Shox 3.0 Factory Race Series Bypass Remote Reservoir Shocks are engineered to withstand extreme terrain and deliver reliable, race-proven performance in off-road, desert racing, rock crawling, and extreme trail applications. These bypass shocks offer precise tuning, with multiple adjusters for rebound, compression, and free bleed.
Built with cutting-edge materials and technology, these shocks are trusted by top off-road racers!
Experience superior damping, heat dissipation, and suspension articulation for the most demanding off-road adventures!
Advanced Shock Technology & Key Features
✅ 3-Tube Remote Reservoir Bypass Design – Provides unparalleled heat dissipation and progressive damping control
✅ 7075 Hard-Anodized Aluminum Piston – Lightweight & built for extreme durability
✅ Zinc-Plated Seamless Steel Bodies – Rust-resistant and highly durable for long-lasting performance
✅ High-Temperature Viton® Seal Pack System – Prevents leaks and ensures consistent damping in extreme conditions
✅ Tunable, Velocity-Sensitive Deburred Valve Shims – Allows fine-tuning for different terrains and ride styles
✅ 17-4 H900 Hard Chrome Plated Stainless Steel Shafts – Ultimate strength and corrosion resistance
✅ PTFE-Lined Heat-Treated Alloy Steel Spherical Bearings – Enhanced articulation and durability
✅ JM92 Advanced Suspension Fluid – Optimized performance across all temperature ranges
Perfect for lifted trucks, UTVs, pre-runners, and extreme off-road builds!
Technical Specifications
| Feature | Details |
|---|---|
| Brand | Fox Racing Shox |
| Manufacturer’s Part Number | 883-26-077 |
| Product Type | Shocks & Struts |
| Lifted Amount Range | 3.50-4.50 inches |
| Extended Length | 27.70 inches |
| Collapsed Length | 16.98 inches |
| Shock Body Diameter | 3.000 inches |
| Gas Charged? | ✅ Yes |
| Reservoir Type | ✅ Remote Reservoir |
| Adjustable Valving? | ✅ Yes – Compression, Rebound & Free Bleed |
| Shock Shaft Material | 17-4 H900 Hard Chrome Plated Stainless Steel |
| Shock Body Material | Seamless Zinc-Plated Steel |
| Upper Mount Type | Eyelet |
| Lower Mount Type | Eyelet |
| Bushing Material | PTFE-Lined Spherical Bearing |
| Boot Included? | ❌ No |
| Quantity | Sold as a pair |
Upgrade to Fox Racing’s Factory Race Series shocks and take your off-road adventures to the next level!
Fitment & Compatibility
✔ Designed for Off-Road & Performance Applications
✔ Ideal for Desert Racing, Rock Crawling, & High-Speed Off-Roading
✔ Compatible with Lifted Trucks, UTVs, and Custom Builds
Ensure proper fitment for your specific vehicle before purchase!
Installation Notes & Tips
Professional Installation Recommended for Best Results
⚙️ May Require Custom Mounting for Some Applications
Fine-Tuning is Recommended for Maximum Performance
No Cutting or Welding Required – Direct Bolt-On Fitment for Select Applications
⚠️ After installation, a proper alignment and suspension tuning is required to achieve the best ride quality and handling.
❓ Frequently Asked Questions (FAQ)
What makes these shocks different from standard Fox shocks?
- The 3.0 Factory Race Series features external bypass tubes, remote reservoirs, and tunable valving, making them highly adjustable and built for extreme off-road conditions.
Are these shocks rebuildable?
- Yes! Fox Racing Factory Race Series shocks are 100% serviceable and rebuildable, allowing for extended lifespan and fine-tuned performance.
Can I adjust the ride height?
- Yes! These shocks provide 3.50-4.50 inches of lift, allowing you to fine-tune your suspension height.
Do I need additional suspension components?
- While these shocks offer superior damping, it’s recommended to pair them with upgraded suspension arms, springs, and bump stops for optimal performance.
Are these shocks suitable for daily driving?
- While primarily designed for high-performance off-roading, they can be used on a street-driven vehicle when properly tuned.
Call to Action – Upgrade Your Off-Road Suspension Now!
Dominate any terrain with Fox Racing’s Factory Race Series Bypass Remote Reservoir Shocks!
✔ Race-Proven Performance for Extreme Off-Roading
✔ Fully Adjustable for Custom Damping Control
✔ Remote Reservoir for Maximum Cooling & Consistent Performance
✔ Tunable Bypass Valving for the Ultimate Ride Quality
Order Now & Take Your Suspension to the Next Level!
