$1,156.43

Summary: Carburetor ran great right out of the box.

SKU: 136050543279 Category: Tags: , ,

Description

Designed for maximum performance and features a custom CNC machined Ultra main body, Competition Pro Series metering blocks with Billet base plate, Ultra high capacity fuel bowls with #8 O-ring inlet, Wet flowed blueprinted and tested for maximum performance and power, Designed for methanol

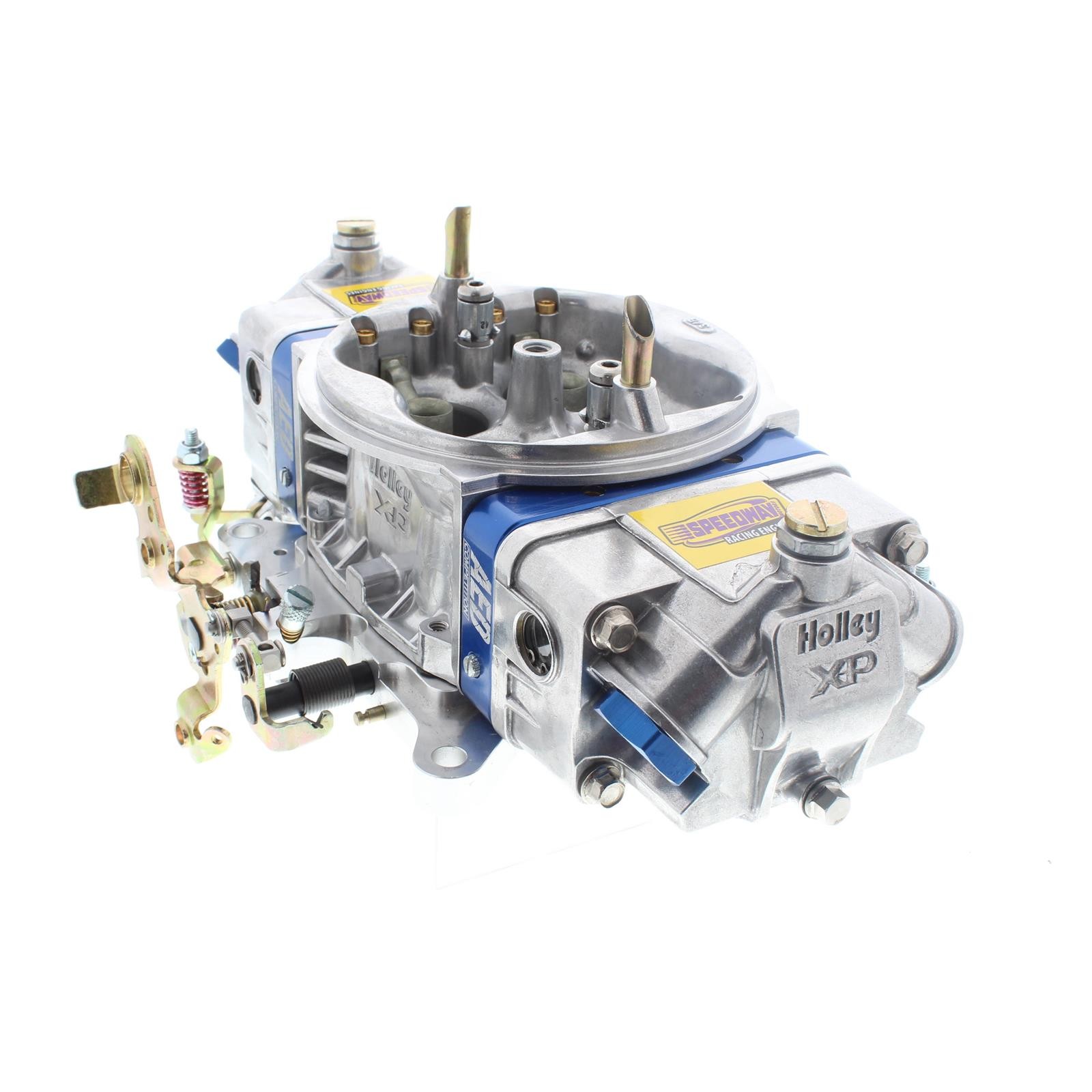

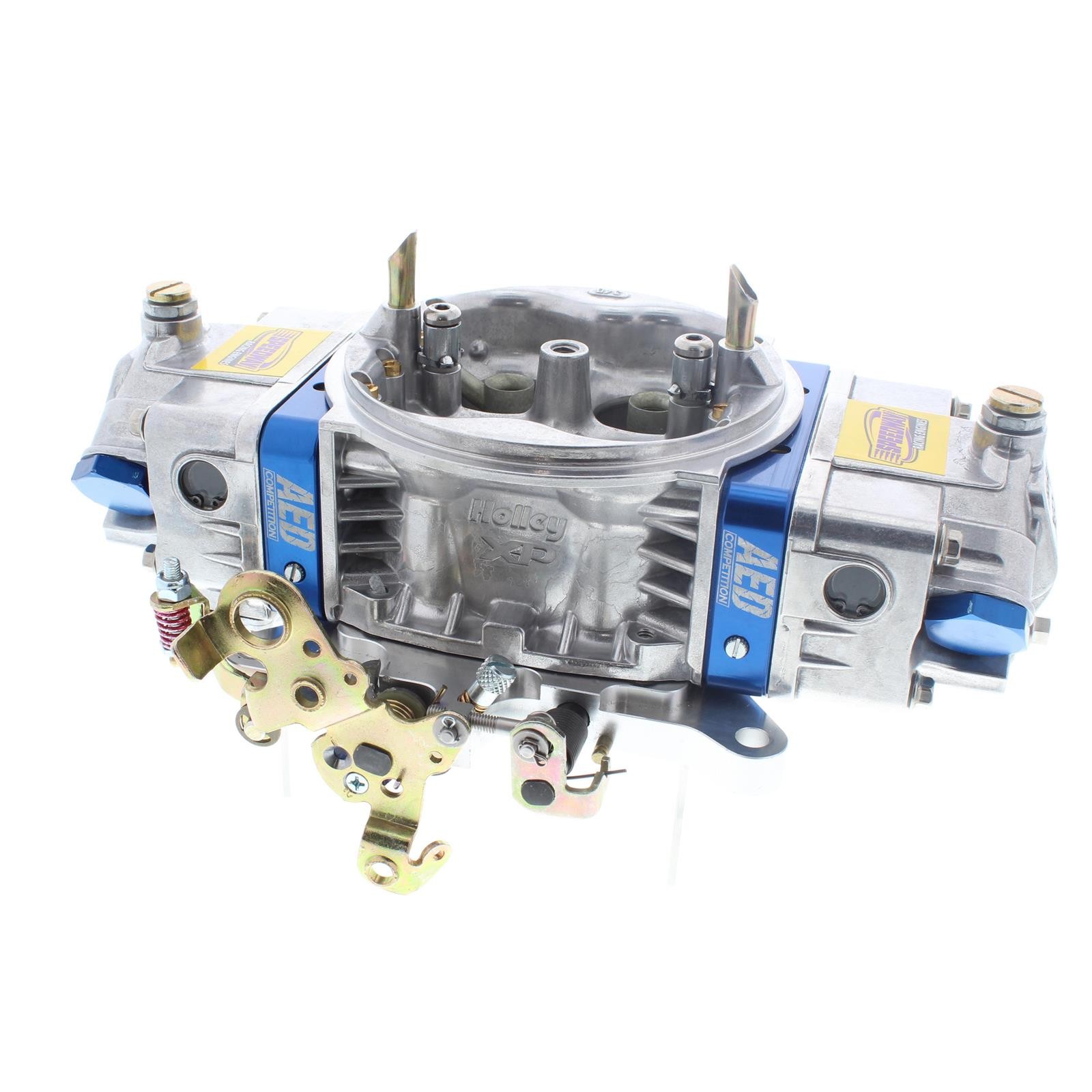

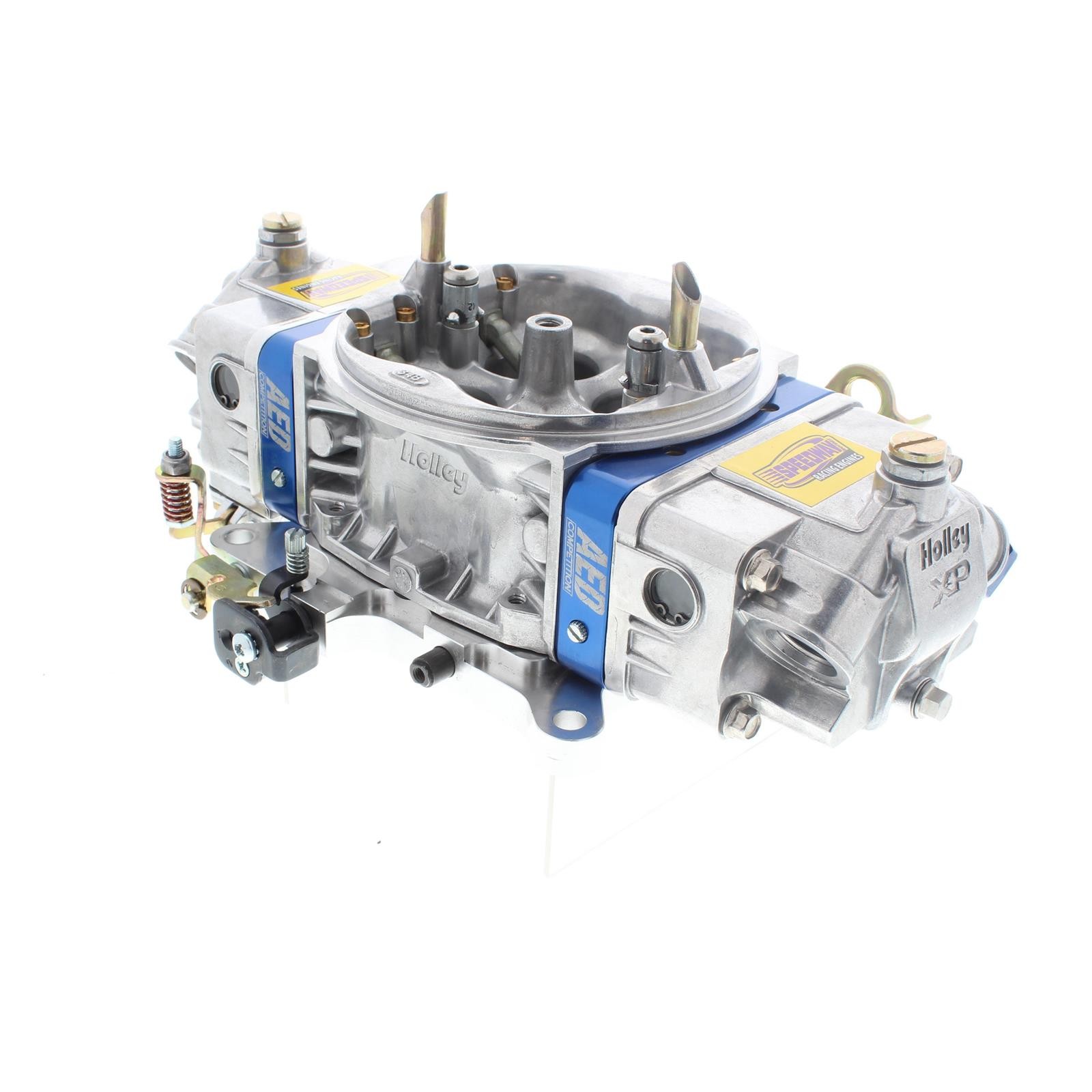

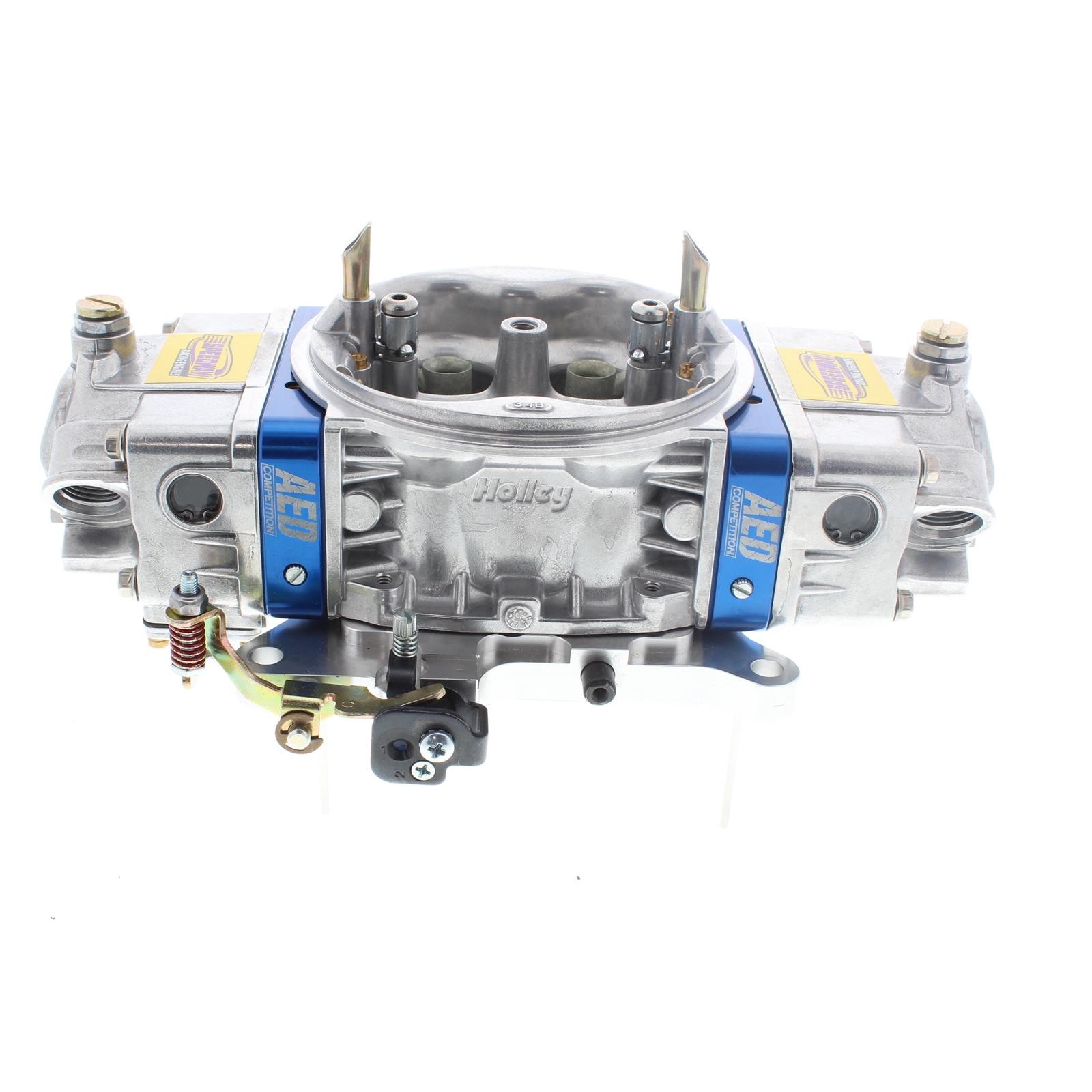

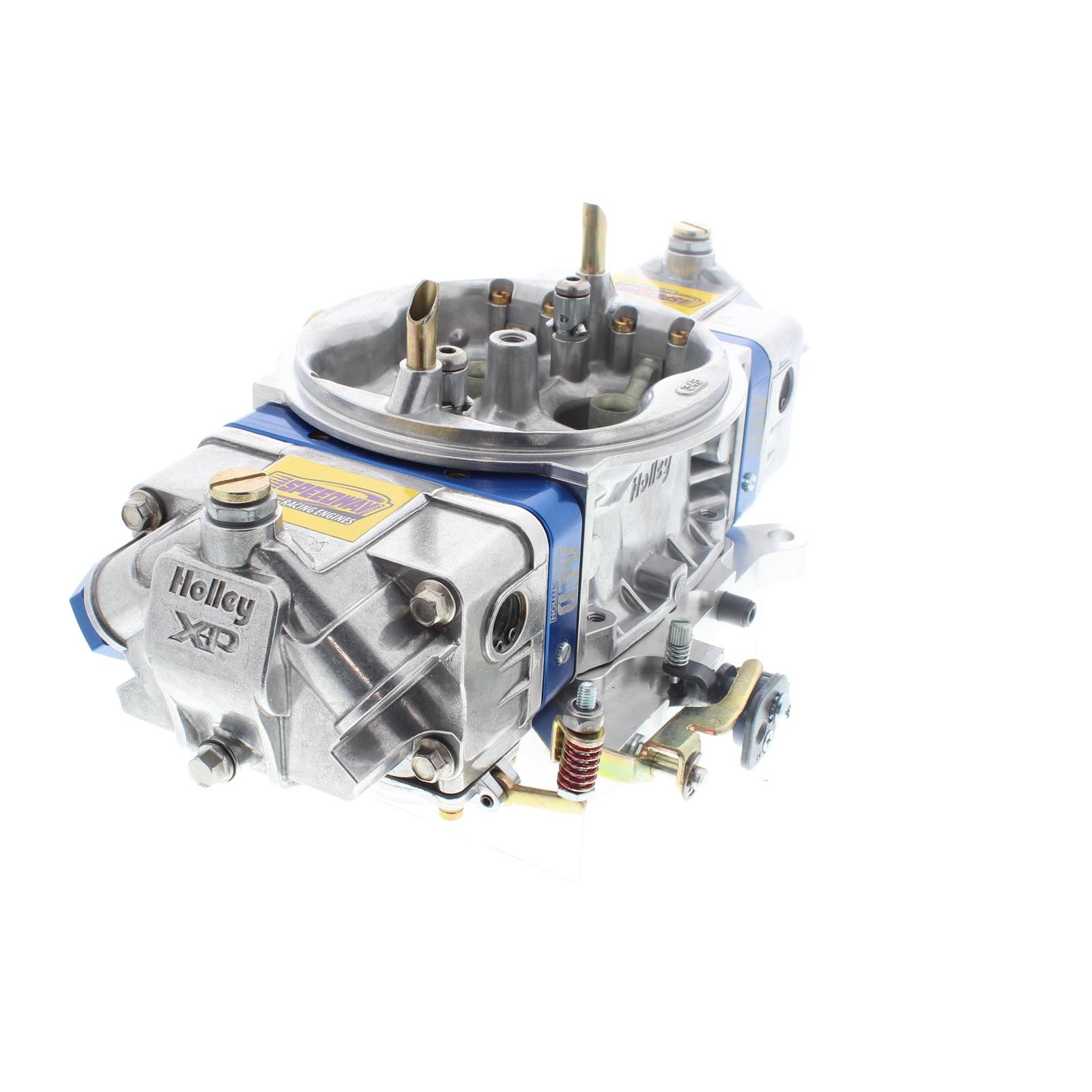

GM 604 Crate Engine Pro Series Alcohol 4150 Carburetor
GM 604 Crate Engine Pro Series Alcohol 4150 Carburetor
Sku # 9107503
Mfr. Part # 9107503
Condition
New
Details
Info

Finally a GM 604 crate motor carburetor that wont break the bank!  MR Auto Group has teamed up with AED Competition to bring you an affordable GM 604 crate carb that out performs the most expensive carburetors on the market.  These Speedway exclusive carbs have spent countless hours on the dyno and track test sessions resulting in a custom hand built, sized, wet flowed and maximum performance tested racing carburetor.

  • Designed for maximum performance and features a custom CNC machined Ultra main body
  • Competition Pro Series metering blocks
  • Ultra high capacity fuel bowls with -8 AN O-ring inlet
  • Billet base plate, thinned shafts, stainless blades
  • Wet flowed, blueprinted and tested for maximum performance and power
  • Specifically designed for use on GM 604 racing crate engines
  • For methanol fuel ONLY
Specs
Material Type
Aluminum
Sold in Quantity
Each
Color
Silver
CFM
750 CFM
Fuel Type
Alcohol
Carburetor Barrels
4-Barrel
Secondary Type
Mechanical
Fuel Inlet Type
Dual
Choke Type
No Choke
Finish
Ball Burnished
Carburetor Flange Type
4-Barrel Square Bore
New or Remanufactured
New
Throttle Linkage Type
Universal
Gasket(s) Included
Yes
CFM Range
700-799 CFM
Bolt Hole Pattern
5.160″ x 5.625″
MFG. Part #
9107503
